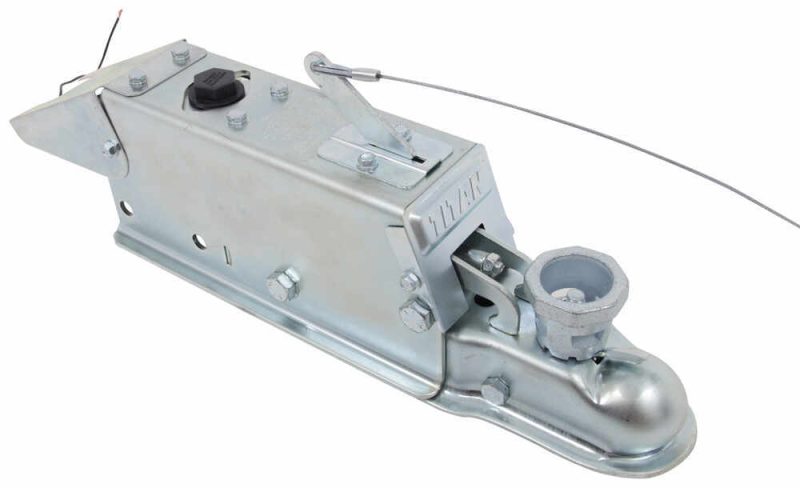

Actuator, Model 60, DISC Brakes, 2″, 7K, Bolt On, Zinc

Actuator, Model 60, Disc Brakes, 2″, 7K, Bolt On, Zinc Easy and convenient turn-wheel latch lets you fit the coupler on this corrosion-resistant, surge-type actuator to a hitch ball measuring 1-7/8″, 2″ or 50 mm. Designed for use with disc trailer brakes. When you apply the brakes in your tow vehicle, deceleration occurs and momentum pushes your trailer toward the rear of your vehicle. With surge brake systems, the actuator is triggered as your trailer moves forward while the tow vehicle slows. The actuator telescopes, applying force to its master cylinder, which in turn supplies the necessary hydraulic pressure to engage the trailer’s brakes. Features: Hydraulic actuator synchronizes trailer brakes with tow-vehicle brakes Easily adjustable to fit 1-7/8″, 2″ and 50-mm balls Turn handwheel to tighten coupler around ball Breakaway kit included Zinc plating provides corrosion resistance Durable steel construction Bolt-on installation Bolt holes 3″ apart on center Made in USA Specifications: Application: disc brakes Ball size: 1-7/8″, 2″ or 50 mm Some adjustment may be required Mounting: 3″ wide channel tongue Capacity: 7,000 lbs Maximum tongue weight: 700 lbs
