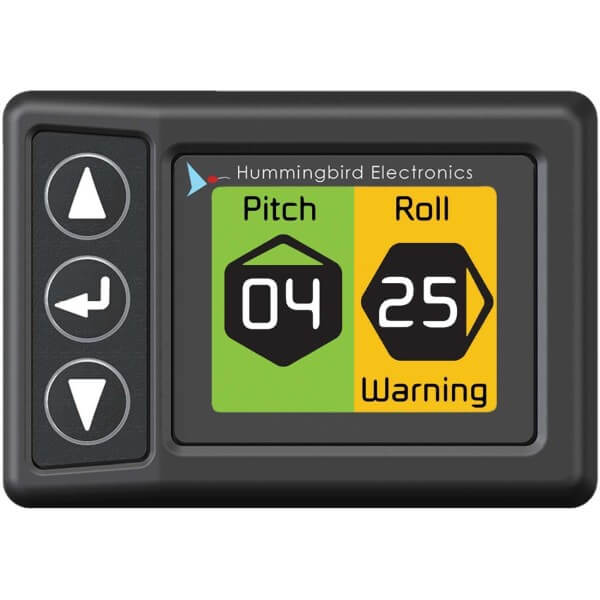

HUMMINGBIRD INTEGRATED COMPACT INCLINOMETER HMDS0400

Hummingbird’s Integrated Compact Inclinometer is a simple device that enables machinery operators to monitor both pitch and/or roll of their machines. It incorporates an integrated accelerometer into the compact colour display. It allows for flexible and more cost-effective installations. It is powered by simply plugging into a cigarette lighter socket or directly hard wiring to machine power. The full-colour display can be positioned in a range of orientations, allowing it to be customised to suit individual needs. The easy-to-follow integrated menu allows for interpretation of pitch and roll angles in either degrees or percent gradients. It also features configurable warning and alarm levels that are linked to an internal buzzer that will alert an operator if a dangerous pre-determined angle has been reached. Features          Easy to view pitch and roll measurements          Configurable warning and alarm levels          Multi-voltage allows installation into 12 and 24 volt vehicles          Full colour screen display          Internal buzzer          Password protected menu          Rugged mounting system          Australian designed and manufactured Specifactions: Mounting System Bracket Dash Mount Input Voltage Minimum 9V; Maximum 36V Power Consumption <1W Dimensions (Display Unit) 70mm W x 50mm H x 18mm D Operating Temperature -40℃ to 85℃
