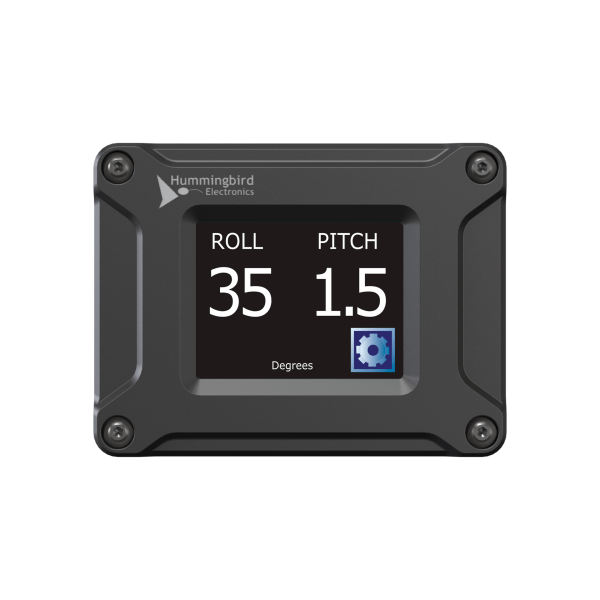

Hummingbird’s Panel-Mount Inclinometer (Slope Meter) provides a simple roll only or pitch and roll display to operators. In roll only mode, a configurable warning bar gives a clear indication of the severity of the current roll. The Panel-Mount Inclinometer (Slope Meter) has been designed as a more versatile replacement for mechanical Bubble and Ball Inclinometers. Superior Versatility Designed for harsh automotive environments, the Panel-Mount Inclinometer (Slope Meter) features a tough aluminium enclosure and high visibility display. The unit is designed to be mounted in the dash-board of a vehicle or in an instrument panel and will protrude only slightly. The Panel-Mount Inclinometer (Slope Meter) can be calibrated and configured via the touch-screen with the following options available to the installer: • Pitch & roll display • Roll only display • Internal dual axis sensor • Sensor damping configurable • Easy to install • Multi-voltage 12/24V • Reverse polarity protected • Password protection The Panel-Mount inclinometer (Slope Meter) is simple to install and only requires power and ground to operate. It can be installed at any pitch angle (for instance on a sloped dashboard) but should be as close as possible to the horizontal. Small roll deviations can be compensated for by calibrating the device. Specifications: Input Voltage Minimum 9V; Maximum 36V Warranty 1 Year Height (mm) 60 Length (mm) 25 Width (mm) 80
