Rotary Swivel Coupling Set 1“ BSP 90 Degree 150L – 280 BAR
$20.04
$30.66

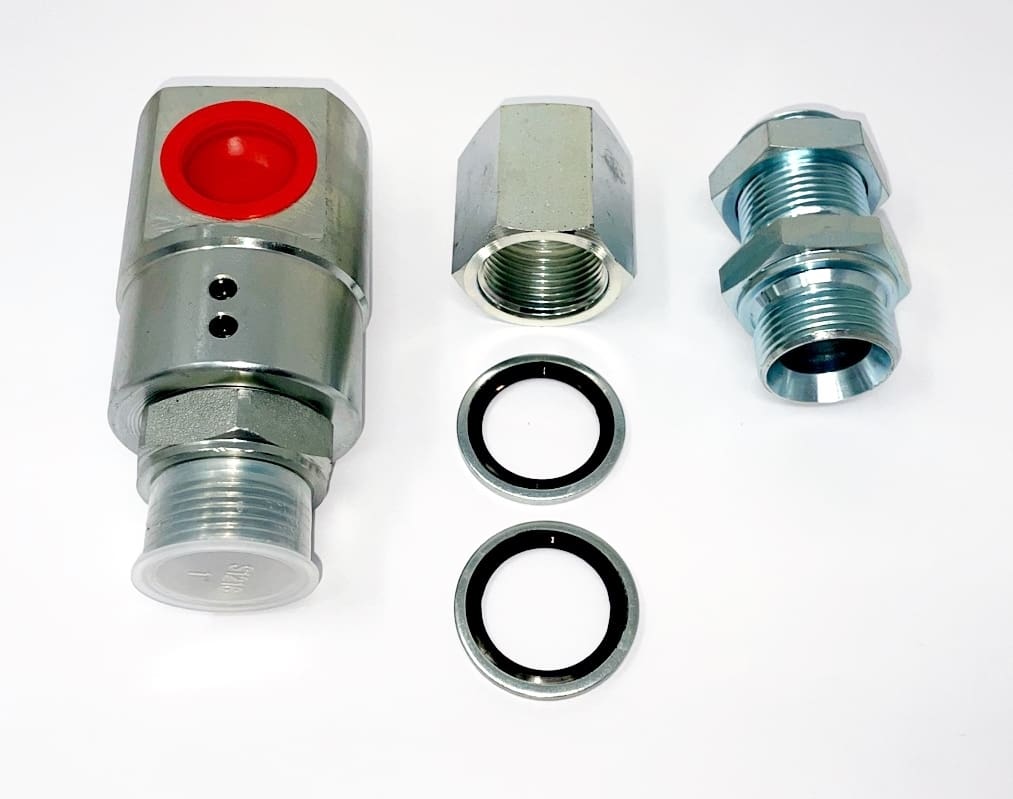

Description Rotary Swivel Coupling Set 1“ BSP 90 Degree 150L – 280 BAR Rotary couplings are used to connect two hydraulic hoses during movement and allow rotation at max pressure while reducing torsional forces. Also used in applications that are required to rotate but not under pressure, such as hose reels. The spindle is carried on a roller bearing and has a low friction shaft seal that can rotate at maximum pressure with low torque. Includes 1 x Bulkhead 1” BSP Includes 1 x Female Bush 1” BSP Includes 2 x Bonded Washers Carbon steel with trivalent plating fitted with nitrile seals Operating temperatures -40°C (-40°F) to 106°C (223°F) Maximum working pressure: 280 BAR Maximum flow rate: 150 LPM Maximum rotational speed: 230 RPM Applications: General hydraulic systems Machine tools Test equipment Agricultural Mobile hydraulics
