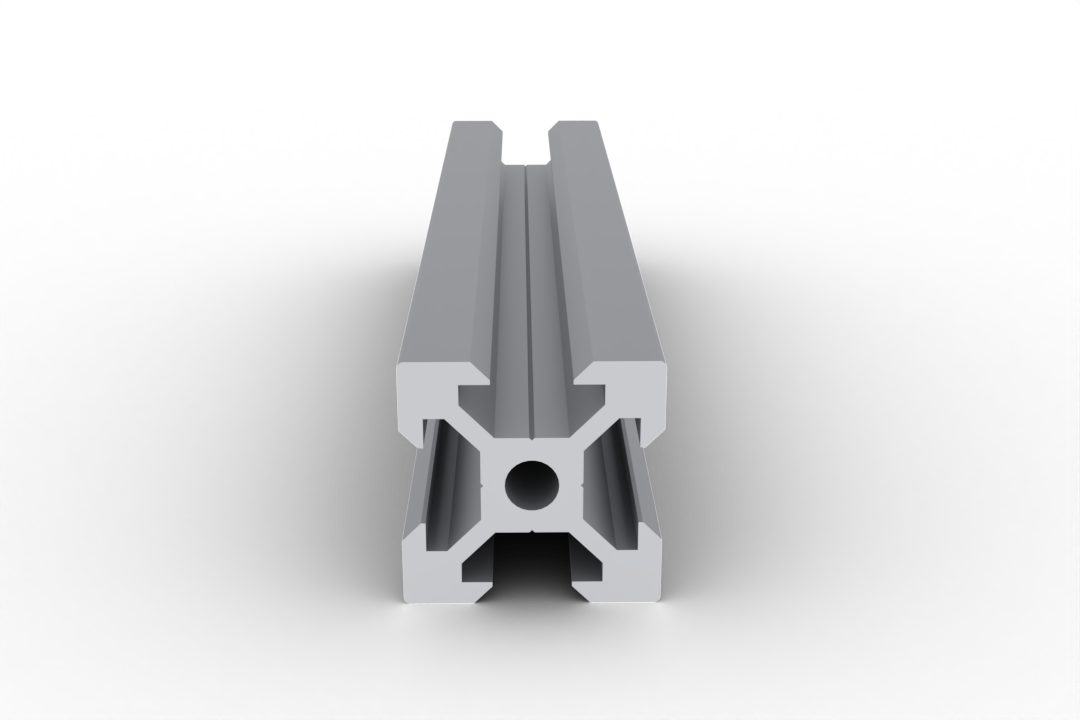

Description V-Slot aluminum extrusion profile combines the linear motion with a modular structural framing system. This profile is compatible with the V-Slot accessories, wheels, etc. Dimensions: 20×20 mm Profile type: V-Slot Profile series (size): 20mm Slot width: 6mm Core: Ready for M5 threading (profile is supplied non-threaded) Material: Aluminum (6060-T5 alloy) Finish: Anodized aluminum, silver Slot Type: Standard (open) Number of Open Slots: 4 Quick reference for the V-Slot 20mm series 20mm series This profile belongs to the 20mm series, available in sizes such as 20x20mm, 20x40mm, and more. 6mm slot This profile has a 6mm slot size, so it’s compatible with our 6mm slot accessories M5 thread The profile’s core is designed to be threaded with an M5 tap. Please note that the profile is supplied unthreaded, so you will need to thread it yourself using a tap. Technical drawing You can click on the drawing to open the PDF file. Technical specs Mass: 0.44 kg/m Elasticity module: 69.5 GPa (6.95 x 1010 Pa) Moment of inertia Ix: 6.988 x 10-9m4 Moment of inertia Iy: 6.988 x 10-9m4 3D models 2020V 20x20mm V-Slot Profile v18.stlDownload 2020V 20x20mm V-Slot Profile v18.stepDownload 2020V 20x20mm V-Slot Profile v18.f3zDownload Examples of use This profile can be connected using aluminum brackets, hammer nuts (6mm slot compatible), and bolts (M5x8 ISO 7380 button head bolts recommended). Bracket 20mm slot 6 90 degrees bracket for 20mm aluminum extrusion For 6mm slot aluminum profiles (compatible with 20mm V-Slot) Material is cast aluminum Hammer nut for 6mm slot, M5 thread Hammer T-nut for 6mm slot profile (for 20mm V-Slot profile) M5 thread Galvanized steel
