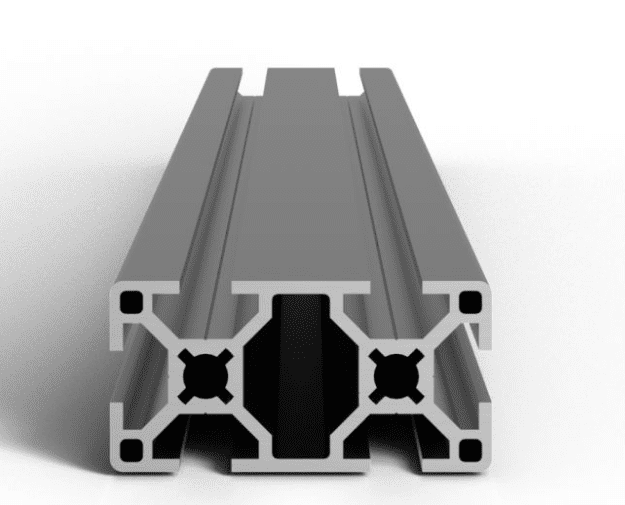

Description Our 30mm series aluminum extrusion is a versatile medium-size profile, perfect for constructing machinery frames, workbenches and structures. Dimensions: 30×60 mm Profile type: B-Type, T-Slot type Profile series (size): 30mm Slot width: 8mm Core: Ready for M8 threading (profile is supplied non-threaded) Material: Aluminum (6060-T5 alloy) Finish: Anodized aluminum, silver Slot Type: Standard (open) Number of Open Slots: 6 Quick reference for the B-type 30mm series 30mm series This profile belongs to the 30mm series, available in sizes such as 30x30mm, 30x60mm, and more. 8mm slot This profile has a 8mm slot size, so it’s compatible with our 8mm slot accessories M8 thread The profile’s core is designed to be threaded with an M8 tap. Please note that the profile is supplied unthreaded, so you will need to thread it yourself using a tap. Technical drawing You can click on the drawing to open the PDF file. Technical specs Mass: 1.52 kg/m Elasticity module: 6.95 x 1010 Pa (69.5 GPa) Section area: 3.193 x 10-4m2 (319.2mm2) Moment of inertia Ix: 5.331 x 10-8m4 Moment of inertia Iy: 1.991 x 10-7m4 Elastic section modulus Wx: 3.553 x 10-6m3 Elastic section modulus Wy: 6.637 x 10-6m3 3D models 3060B 30x60mm Type-B Profile v6.2tlDownload 3060B 30x60mm Type-B Profile v6.stepDownload 3060B 30x60mm Type-B Profile v6.f3zDownload
