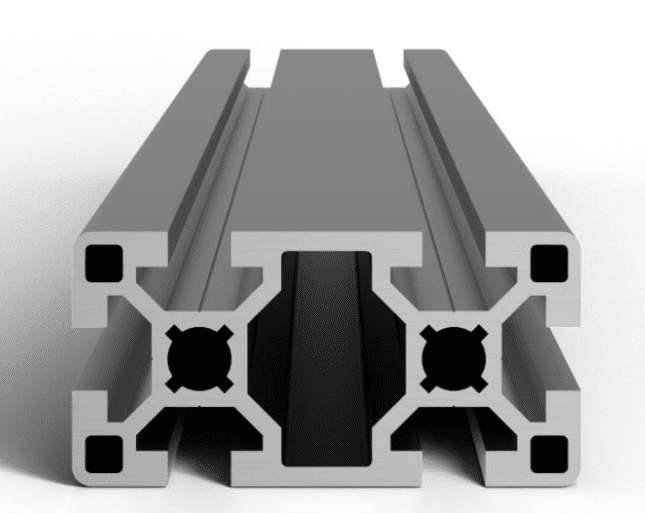

Description Our 40mm series aluminum extrusion is a robust and versatile profile, perfect for constructing industrial structures, workbenches, and machinery frames. Dimensions: 40×80 mm Profile type: B-Type, T-Slot type Profile series (size): 40mm Slot width: 10mm Core: Ready for M12 threading (profile is supplied non-threaded) Material: Aluminum (6060-T5 alloy) Finish: Anodized aluminum, silver Slot Type: Standard (open) Number of Open Slots: 6 Quick reference for the B-type 40mm series 40mm series This profile belongs to the 40mm series, available in sizes such as 40x40mm, 40x80mm, and more. 10mm slot This profile has a 10mm slot size, so it’s compatible with our 10mm slot accessories M12 thread The profile’s core is designed to be threaded with an M12 tap. Please note that the profile is supplied unthreaded, so you will need to thread it yourself using a tap. Technical drawing You can click on the drawing to open the PDF file. Technical specs Mass: 3.11 kg/m Elasticity module: 6.95 x 1010 Pa (69.5 GPa) Section area: 1.153 x 10-3m2 (1153.1mm2) Moment of inertia Ix: 1.955 x 10-7m4 Moment of inertia Iy: 7.356 x 10-7m4 Elastic section modulus Wx: 9.773 x 10-6m3 Elastic section modulus Wy: 1.839 x 10-5m3 3D models 4080B 40x80mm Type-B Profile v2.stlDownload 4080B 40x80mm Type-B Profile v2.stepDownload 4080B 40x80mm Type-B Profile v2.f3zDownload
