DCS ULTIMATE LANDCRUISER 300 SERIES DUAL BATTERY SYSTEM (LITHIUM) 12V 180AH – LC300

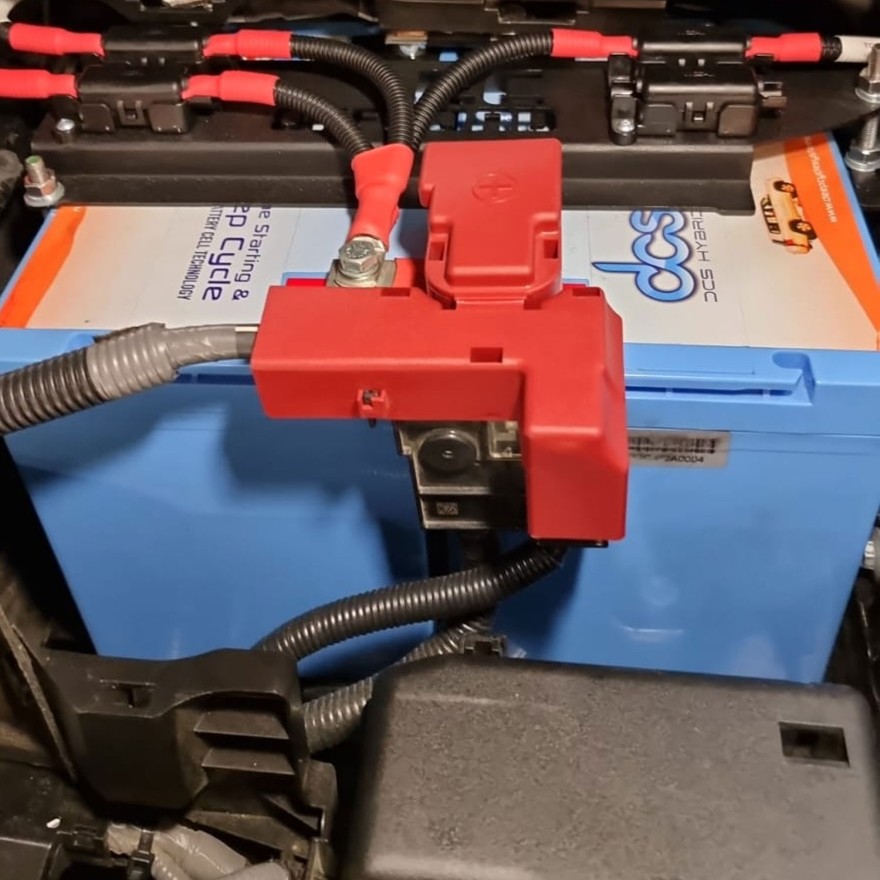

The latest DCS hybrid 180Ah under bonnet Toyota LandCruiser 300 series dual battery system now feature the powerful integrated DCS 80V/20A MPPT solar regulators. You can now see the extra solar supply input via a dedicated shunt via the Bluetooth app. The 180Ah DBS is supplied with 2 x DCS 90Ah Hybrid Batteries, one battery is configured as a Right Hand Positive and the second battery is configured as a Left Hand Positive that also has the solar MPPT input socket. Part of the system you also get a IP67 aviation to Anderson Plug cable, to plug and play your solar supply. All DCS dual battery systems (DBS) are supplied with the fully programmed Victron Smart Battery Protect’s which are a load disconnect. This device is what governs the reserve for engine starting. Very efficient only drawing 1.2mA when engaged. We recommend to use the top 80% for deep cycling for accessories and the remaining 20% is reserved for engine cranking. The SBP’s should be installed inside the cabin and you should be protecting as many of your light loads as possible, USB sockets, fridges, lighting, dash cams, UHFs, Cel-Fi’s etc.. Inverters over 300W must be wired directly to the batteries bypassing the SBP’s. With two of the DCS 90Ah Hybrid batteries connected in parallel you can charge up to a maximum of 80A x 2, so 160A. So ideally keep alternators under 150A. All DCS batteries feature high performance cylindrical cells, and this mechanical design is very efficient so it’s very easy to recharge these batteries, there is no need to install larger alternators, OEM alternators are the best for our batteries and will charge them back up very fast. If your running a vehicle with a lazy smart alternator focus on installing a quality commercial solar panel something at least 360W as our powerful 20A MPPT is able to yield in excess of 100Ah per day. Which will easily keep the batteries topped up when running a standard sized fridge. This system is suitable for just about every make/model of 4WD on the market that can accommodate these sized batteries under the bonnet or of course in the cabin if one so wishes. LC300 Dual Battery System Specifications: Nominal Voltage 12.8V Nominal Capacity (1Hr) 90Ah Case Dimensions (L x W x H) 260mm x 169mm x 210mm Weight | RHP 10.30KGs (without MPPT) Weight | LHP 11.90KGs (with MPPT) Cycling voltage 12.8~ 14.6V Charge voltage 13.8 ~ 14.6V Float Voltage 13.5 ~ 13.7V Max Charge Current 80A Recommended Charge Current ≤70A Max Discharge Current ≤200A BMS (built in) Automatic cell balancing, over discharge/charge Cell Chemistry DCS 3.2V 5.0 – 7.2Ah Cylindrical (LifePO4) Cycle Performance 2500 Cycles @ 100% DOD LCA (Lithium Cranking Amps) 900A Ingress Protection IP54 Case PP (flame retardant) Operating temp Range -30 to 110 degrees C Terminals Top Mount M8 Stainless steel / Copper Parallel Connections Only Yes Warranty 3 years Programming the Victron Smart Battery Protect for DCS Hybrid Toyota LandCruiser 300 Series Dual Battery Systems DCS HIGH PERFORMANCE 2C CHARGE & DISCHARGE CURVES Powered by the DCS LFP App DCS Bluetooth Technology powered by DCS LFP, this APP is only for DCS LFP batteries which is based on BLE 4.0 technology. Every DCS battery pack comes standard with our detailed battery monitoring via Bluetooth. This App provides comprehensive monitoring for DCS LFP batteries, including: SOC% Time Remaining Battery pack voltage, Power & Current Battery Management MOSFET temperature Individual Cell Status with balancing indicators. Connectivity distance up to 10 meters. Every DCS battery pack comes standard with our detailed battery monitoring via Bluetooth LC300 Dual Battery System Wiring
