21.0016 – Power Lock Fastener 30 SF

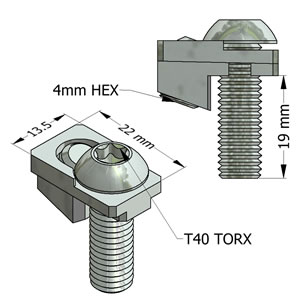

Description Steel power-lock body with M8 set screw and M8x25 self tapping screw Used to fasten 30 Series profiles at a 90 angle without the use of additional machining. Drive the self tapping screw directly into the center bore using a T40 Torx bit, leaving a quarter turn of play. Tighten the set screw to lock the profile in place. Only compatible with 30 Series Profiles CAD files available (click to download): SolidWorks STEP
