RAM 25K Square Trailer Jack, Spring Loaded, 13″ Travel

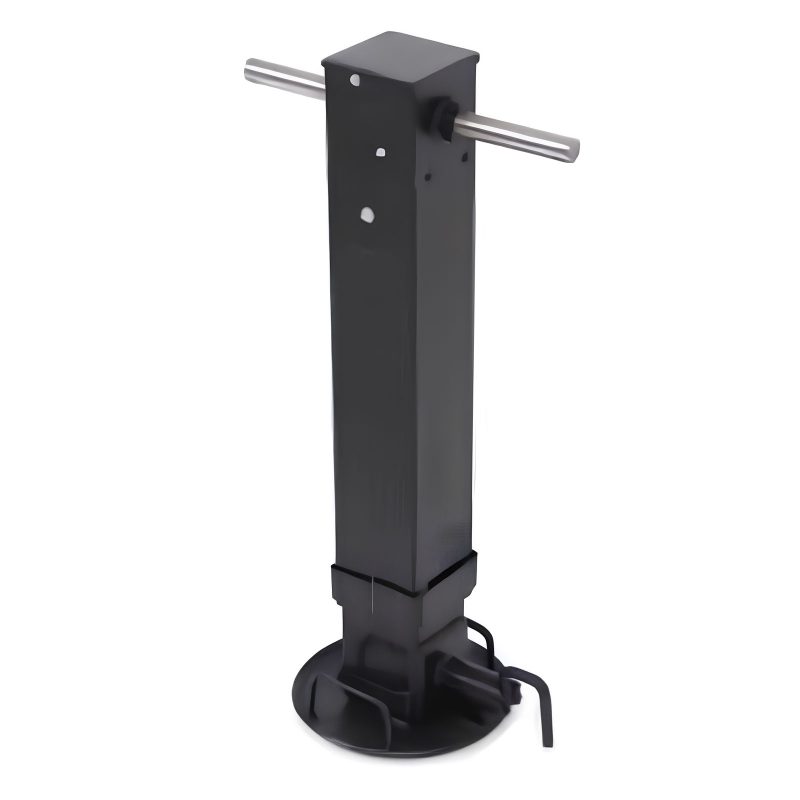

RAM 25K Square Trailer Jack, Spring Loaded, 13″ Travel, TJD-25100 RAM Drop Leg Jack with painted outer tube, inner tube and drop leg welds directly to the trailer tongue. Jack includes handle and retaining clip. By rotating the handle on this spring activated model, the drop section automatically retracts. Specifications: Lift capacity- 25,000 lbs Total travel- 24-1/2″ Screw travel- 13″ Drop leg travel- 11-1/2″ Overall height (from bottom of foot to top of jack) Retracted- 30″ Extended- 43″ Height (from bottom of footplate to bottom of outer tube) Retracted- 5″ Extended- 18″ Outer tube length- 25″ Outer tube width- 4-3/8″ Inner tube width- 4″ 1-1/2″ Plunger pin hole diameter Adjustment hole spacing- 4″ on center Rod shaft diameter- 1″ Footplate diameter- 9-7/8 Ideal for commercial, construction and other types of trailer applications where heavy duty lifting is needed.
