28.0021/0 – Fixing Kit LRK

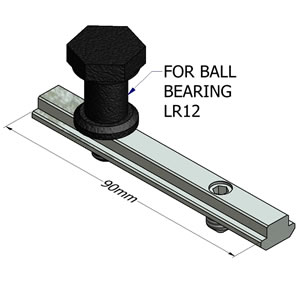

Description An assembly consisting of one zinc plated T-slot bar with set screw, M8 concentric bolt, and washer. This assembly can be used for all Minitec linear guides LR for the attachment of ball bearings LR 12. Assembly Methods: Fix T-slot bar in slot of lower slide side with set screws. Fasten the bearing to the T-slot bar using washer and M8 bolt. CAD files available (click to download): SolidWorks STEP
